HVAC Replacement Cost Calculator
Cost EstimatorEstimate the cost to replace a central AC, heat pump, or mini-split system based on home size, climate, and efficiency tier.
Your Measurements
Rule of thumb: ~500 sq ft per ton. Actual sizing requires ACCA Manual J.
Heat pumps qualify for up to $2,000 federal tax credit (IRA Sec. 25C)
Min. SEER2 15 required in South/Southwest US as of 2023
New ductwork adds $3,000–$8,000 to installation cost
SEER2 Ratings & Efficiency Standards
Choosing the right efficiency tier is one of the most important decisions in an HVAC replacement. As of January 2023, the DOE mandates a minimum of SEER2 15 for new residential split-system air conditioners in the Southeast and Southwest US — up from the previous 14 SEER standard. Upgrading from a 14 SEER unit to a 20 SEER system reduces cooling energy consumption by roughly 30%, which can save $200–$400 annually on electricity bills depending on your climate and usage. Ultra-high-efficiency heat pumps now reach 25+ SEER2 and qualify for up to $2,000 in federal tax credits under the Inflation Reduction Act, significantly shortening their payback period.
Correct Sizing & Installation Practices

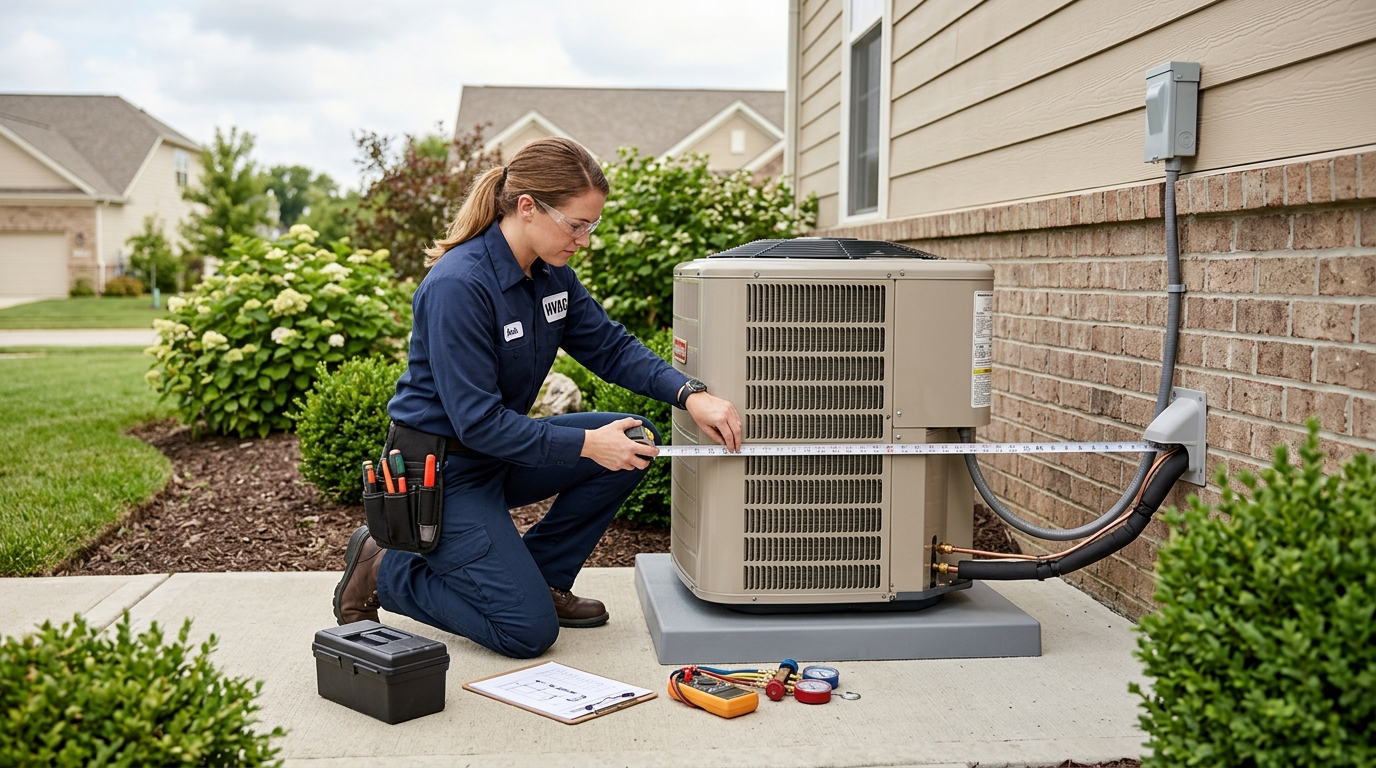

Oversized HVAC systems are as problematic as undersized ones. An oversized unit short-cycles — turning on and off too frequently — which prevents effective dehumidification, accelerates wear, and creates uncomfortable temperature swings. The only code-compliant way to properly size a system is through an ACCA Manual J load calculation, which accounts for your home's insulation, window area, ceiling height, air infiltration rate, local climate, and occupancy. Beyond sizing, the outdoor unit requires 18–24 inches on all sides of outdoor unit for proper airflow and service access. Obstructed clearances can reduce system efficiency by up to 10% and void manufacturer warranties.
Regulatory Building Standards — ENERGY STAR v3.1 — Thermal Enclosure Checklist
Cited StandardOne of the most overlooked factors in HVAC performance is duct leakage. The DOE's ENERGY STAR program requires that total duct leakage not exceed Total duct leakage ≤ 4 CFM25 per 100 sq ft of conditioned space. In practice, studies by the Lawrence Berkeley National Laboratory found that typical American homes lose 20–30% of their conditioned air through leaks in attic ductwork — effectively paying to heat and cool unconditioned space. This single issue can negate the efficiency gains of upgrading to a high-SEER system entirely.
When replacing an HVAC system, always request a duct leakage test (blower door + duct blaster) from your contractor. Sealing and insulating existing ducts can improve system efficiency by 20–30% and is now required by code in many jurisdictions before a new system can be commissioned. In homes without existing ductwork, a ductless mini-split system eliminates leakage entirely, delivering conditioned air directly to each zone at near-100% efficiency.
- •Total duct leakage must not exceed 4 CFM25 per 100 sq ft of floor area.
- •Perform blower door and duct blaster tests during system commissioning.
- •Insulate attic ductwork to at least R-8 to minimize thermal loss.
- •Ductless mini-splits can be utilized to eliminate duct leakage entirely.
Frequently Asked Questions
Technical building code (IRC/ASTM) references and trade-tested guidance for your project.
One ton of cooling capacity removes 12,000 BTUs of heat per hour. The industry rule of thumb is approximately 500 sq ft per ton, but an ACCA Manual J load calculation is the only code-compliant way to right-size an HVAC system. Factors such as ceiling height, insulation levels, window area, local climate, and number of occupants all affect the required tonnage.
SEER2 (Seasonal Energy Efficiency Ratio 2) measures how efficiently an air conditioner converts electricity into cooling over an entire season. Upgrading from a 14 SEER unit to a 20 SEER unit reduces cooling energy consumption by approximately 30%. In the US, the minimum SEER2 standard for new residential systems is 14 (North) or 15 (South/Southwest) as of 2023.
The industry rule is the '5,000 rule': multiply the system's age by the repair cost. If the result exceeds $5,000, replacement is more economical. For example, a 12-year-old system needing a $500 repair scores 6,000 — suggesting replacement. Additionally, if R-22 refrigerant (phased out since 2020) costs are involved, replacement is almost always preferred.
Yes. Under the Inflation Reduction Act, qualified homeowners can claim a 30% tax credit (up to $600) for high-efficiency central ACs, up to $2,000 for qualified heat pumps, and up to $1,200 annually for insulation and air sealing upgrades. The system must meet ENERGY STAR efficiency thresholds and be installed in your primary residence.
